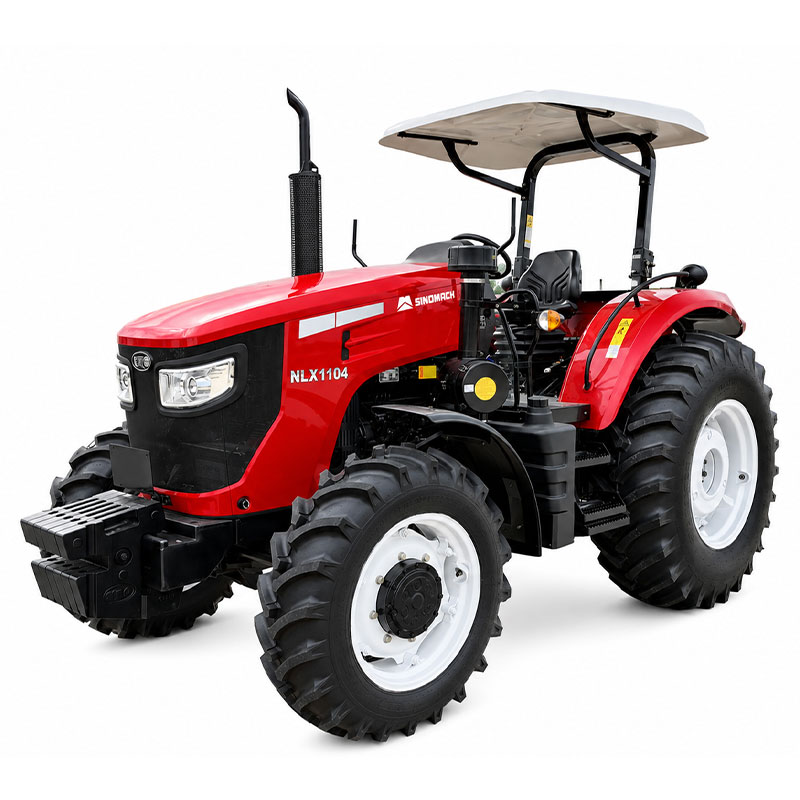

SINOMACH NLX1104 110HP Agricultural Tractor

The SINOMACH NLX1104 is a 110HP four-wheel-drive agricultural tractor designed for demanding farm and plantation operations. Its four-cylinder turbocharged diesel engine, make it an option for buyers who need higher rated power for compatible field equipment, spraying, fertilising and agricultural transport.

It can be evaluated against your workload and implement requirements. Final suitability depends on the equipment, terrain and configuration supplied.

Product Highlights

  • 110HP rated power:
    Suitable for agricultural operations
  • 4×4 drivetrain:
    Traction across appropriate working surfaces
  • 540/1,000 rpm rear PTO:
    Compatible PTO-driven implements
  • 23 kN minimum lifting force at the link joint:
    Based on the published specification
SKU: SINOMACH-NLX1104 Category:

Description

SINOMACH NLX1104 Technical Specifications

Review the NLX1104’s engine, drivetrain, PTO and hydraulic specifications below. Confirm the final configuration with B&F Group before purchase, as optional equipment and supplied specifications may vary.

Engine and Transmission

Specification NLX1104
Rated Power 81 kW / 110 HP
Rated Engine Speed 2,300 rpm
Engine Type 4-cylinder, naturally aspirated diesel
Drive Type 4×4
Clutch Independent, dual action
Standard Transmission 12 Forward + 4 Reverse
Optional Transmission 12F+12R or 24F+8R
Speed Range 2.17–36.7 km/h
Operating Mass 4,550 kg

PTO, Hydraulics and Braking

Specification NLX1104
Rear PTO Speed 540 / 1,000 rpm
Lifting Force at Link Joint ≥ 23 kN
Hydraulic Output 1,2 or 3 Sets
Brakes Wet Disc

Dimensions and Tyres

Specification NLX1104
Overall Dimensions (L × W × H) 4,350 × 2,170 × 2,750 mm/td>
Wheelbase 2,314 mm
Ground Clearance 465 mm
Front Wheel Track 1,564–2,000 mm
Rear Wheel Track 1,652–2,152 mm
Minimum Turning Radius 5.6 ± 0.3 m
Front Tyres 14.9-24
Rear Tyres 18.4-34

Need Help Checking Compatibility?

Share your implement specifications and intended application with B&F Group. The team can help you review the relevant tractor specifications before you request a quotation.

Get A Tractor Recommendation

What Can the NLX1104 Be Used For?

  • Farm and Plantation Operations
    The NLX1104 can be considered for farm and plantation work where its power output, dimensions and implement configuration suit the job. Assess the terrain, working space and workload before selecting the tractor.
  • Field Preparation and Tillage
    The 540/1,000 rpm rear PTO provides options for compatible PTO-driven equipment. Confirm the implement’s required PTO speed, power demand, weight and mounting requirements before using it for field preparation or tillage.
  • Spraying and Fertilising
    The tractor can be evaluated for compatible sprayers, fertiliser spreaders and other agricultural implements. Check the implement’s mounting, PTO and hydraulic requirements before confirming suitability.
  • Mowing and Vegetation Management
    Compatible mowers, slashers and vegetation-management equipment may be suitable when their power demand, mounting requirements and operating conditions match the supplied tractor.
  • Agricultural and Trailer Transport
    The NLX1104 can be considered for suitable agricultural transport tasks when paired with compatible equipment. Confirm the towing arrangement, load limits and operating conditions with B&F Group before selecting a trailer or other towing equipment.
