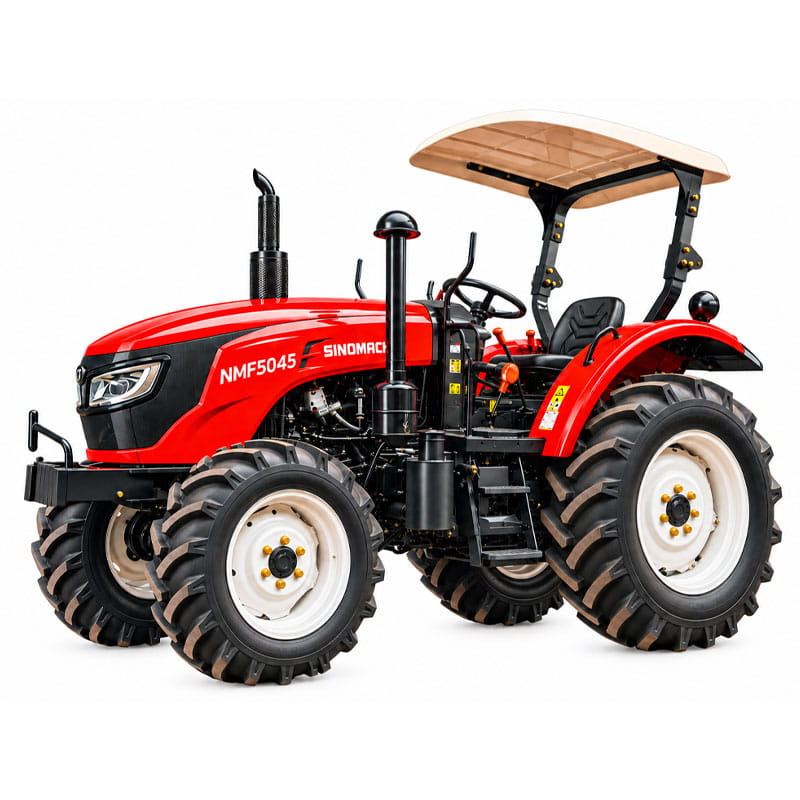

SINOMACH NMF5045 Technical Specifications
Review the NMF5045’s engine, drivetrain, PTO and hydraulic specifications below. Confirm the final configuration with B&F Group before purchase, as optional equipment and supplied specifications may vary.
Engine and Transmission
| Specification | NMF5045 |
|---|---|
| Rated Power | 36.8 kW / 50 HP |
| Rated Engine Speed | 2,300 rpm |
| Engine Type | 4-cylinder, naturally aspirated diesel |
| Drive Type | 4×4 |
| Clutch | Independent, dual action |
| Standard Transmission | 8 Forward + 4 Reverse |
| Optional Transmission | 8F+8R |
| Speed Range | 2.86 – 34.74 km/h |
| Operating Mass | 2,730 kg |
PTO, Hydraulics and Braking
| Specification | NMF5045 |
|---|---|
| Rear PTO Speed | 540 / 720 rpm |
| Lifting Force at Link Joint | ≥ 17 kN |
| Hydraulic Output | 1 or 2 Sets |
| Brakes | Wet Disc |
Dimensions and Tyres
| Specification | NMF5045 |
|---|---|
| Overall Dimensions (L × W × H) | 3,780 × 1,615 × 2,465 mm |
| Wheelbase | 1,970 mm |
| Ground Clearance | 360 mm |
| Front Wheel Track | 1,300 mm |
| Rear Wheel Track | 1,200–1,400 mm |
| Minimum Turning Radius | 4.5 ± 0.3 m |
| Front Tyres | 8.3-20 |
| Rear Tyres | 12.4-28 |
Need Help Checking Compatibility?
Share your implement specifications and intended application with B&F Group. The team can help you review the relevant tractor specifications before you request a quotation.
Get A Tractor RecommendationWhat Can the NMF5045 Be Used For?
- Smallholding and General Farm Work
Its compact dimensions and 4×4 configuration make the NMF5045 an option to evaluate for routine work on smaller farms and smallholdings. Confirm that its dimensions, turning space and traction are suitable for your land. - Rotary Tillage and Land Preparation
The 540/720 rpm rear PTO provides options for compatible PTO-driven equipment, including rotary tillers. Confirm the implement’s required PTO speed, power demand, weight and linkage requirements before use. - General Agricultural Transport
The NMF5045 can be considered for suitable agricultural transport tasks. Any trailer or towing setup must be compatible with the tractor’s configuration and operating limits. Confirm the required towing equipment and safe operating limits with B&F Group. - Other PTO-Driven Implement Work
The tractor may support other compatible PTO-driven implements where their power, speed, mounting and hydraulic requirements match the supplied unit. Check compatibility before purchasing or connecting equipment.
