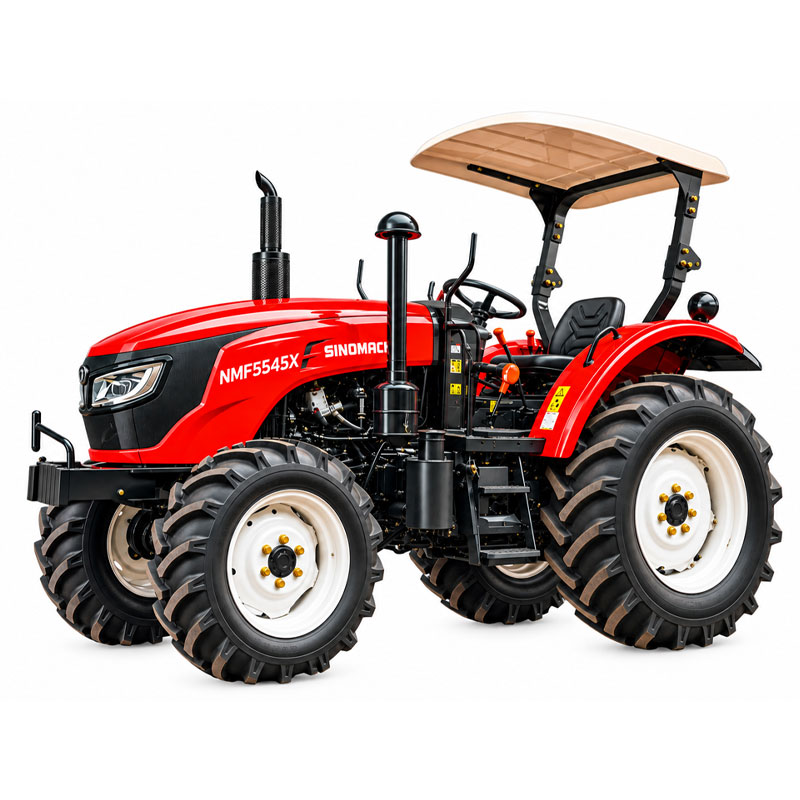

SINOMACH NMF5545X 55HP Agricultural Tractor

The SINOMACH NMF5545X is a 55HP four-wheel-drive agricultural tractor for smaller farms, plantation operations and general agricultural transport. Its four-cylinder naturally aspirated diesel engine, offering a practical specification for buyers comparing tractors in the 50–60HP range. Final suitability depends on your workload, terrain, implement requirements and the configuration supplied.

Product Highlights

  • 55HP rated power:
    Suitable for agricultural operations
  • 4×4 drivetrain:
    Traction across appropriate working surfaces
  • 540/720 rpm rear PTO:
    Compatible PTO-driven implements
  • 20 kN minimum lifting force at the link joint:
    Subject to the published specification and supplied configuration
SKU: SINOMACH-NMF5545X Category:

Description

SINOMACH NMF5545X Technical Specifications

Review the NMF5545X specifications below to assess its suitability for your agricultural work. Confirm the final configuration with B&F Group before purchase, as optional equipment and supplied specifications may vary.

Engine and Transmission

Specification NMF5545X
Rated Power 40.5 kW / 55 HP
Rated Engine Speed 2,200 rpm
Engine Type 4-cylinder, naturally aspirated diesel
Drive Type 4×4
Clutch Independent, dual action
Standard Transmission 8 Forward + 4 Reverse
Optional Transmission 8F+8R
Speed Range 2.74–33.22 km/h
Operating Mass 2,840 kg

PTO, Hydraulics and Braking

Specification NMF5545X
Rear PTO Speed 540 / 720 rpm
Lifting Force at Link Joint ≥ 20 kN
Hydraulic Output 1 or 2 Sets
Brakes Wet Disc

Dimensions and Tyres

Specification NMF5545X
Overall Dimensions (L × W × H) 3,910 × 1,615 × 2,445 mm
Wheelbase 2,092 mm
Ground Clearance 360 mm
Front Wheel Track 1,300 mm
Rear Wheel Track 1,200–1,400 mm
Minimum Turning Radius 4.5 ± 0.3 m
Front Tyres 8.3-20
Rear Tyres 13.6-28

Need Help Checking Compatibility?

Share your implement specifications and intended application with B&F Group. The team can help you review the relevant tractor specifications before you request a quotation.

Get A Tractor Recommendation

What Can the NMF5545X Be Used For?

  • Small Farm and General Field Operations
    The NMF5545X can be considered for routine work on smaller farms and agricultural holdings. Assess the terrain, working space and equipment requirements to determine whether its dimensions and power output suit your operation.
  • Rotary Tillage and Land Preparation
    The dual-speed rear PTO, listed at 540/720 rpm, provides options for compatible PTO-driven equipment such as rotary tillers. Confirm the implement’s required PTO speed, power demand, weight and mounting requirements before use.
  • Agricultural Transport
    The NMF5545X can be considered for suitable agricultural transport tasks when used with compatible equipment. Confirm the towing arrangement, load limits and operating conditions with B&F Group before selecting a trailer or other towing equipment.
  • Compatible PTO-Driven Implement Work
    Other PTO-driven implements may be suitable when their power, speed and mounting requirements match the supplied tractor. Hydraulic compatibility must also be checked where the implement uses hydraulic functions.
